Furuno DT-800MSF Bronze TH NMEA2000 Depth And Temp - DT-800MSF
Furuno

Furuno DT-800MSF Bronze TH NMEA2000 Depth And Temp - DT-800MSF

$391.05

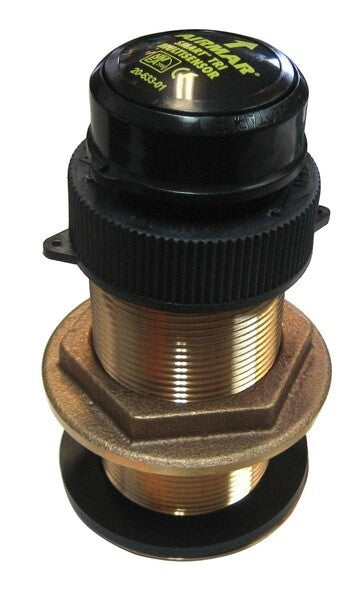

Furuno DT-800MSF Depth and temperature in one compact bronze housing

Model: DT-800MSF
  • Depth and temperature in one compact bronze housing
  • Fast-response temperature sensor provides ±0.2 degC (±0.1 degF) accuracy
  • Acoustic Window: Urethane

Designed with Airmar's exclusive Broadband Ceramic Technology, the DT-800MSF's 235 kHz element improves resolution without sacrificing sensitivity. The higher power rating 100 W RMS provides spot-on depth readings in as little as 0.45 m (1.4 feet) of water and can reach depths up to 180 m (600 feet).

Specifications
Weight
1.5 kg (3.4 lb)
Data Update Rate 1 per second
Minimum Sounding Depth 0.5 m (1.6 feet)
Maximum Sounding Depth 180 m (590 feet)
Pressure Rating 3 m (10 feet)
Pulse Rate 20,000 p/nm* (5.6 Hz per knot)-*p/nm = pulses per nautical mile
Smart Sensor Supply Voltage at 100% Sound Power Output 10 VDC to 25 VDC
Supply Current 40 mA S
tandard Cable Length 6m
NMEA 2000(R) Load Equivalency Number (LEN) 4
