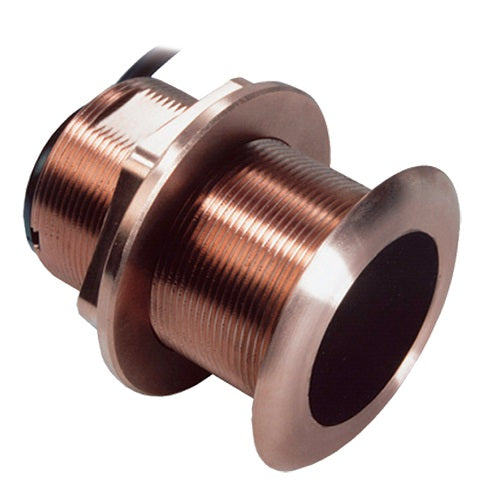

Furuno 520T-BLD Bronze Thru Hull B117 Depth/Temp 10-Pin - 520T-BLD

$232.88

Furuno 520T-BLDLow Profile Broze Thru-Hull Depth and Temp Transducer - 10-Pin

Model: 520T-BLD

depth and temperature
600 W
50 kHz with a wide 45 deg beamwidth for performance to 353 m (1,200 feet)
200 kHz with a 12 deg beamwidth for performance to 206 m (700 feet)
Right-angle cable exit saves space and protects transducer if stepped on
Included rubber washer allows tightening of the hull nut to irregular hull surfaces
Low-profile, bronze housing has minimal drag
Plastic P319 and stainless steel SS60 models are also available to accommodate all hull materials and deadrise angles
30 Foot Cable with 10-Pin Connector

Specifications
Weight

0.9 kg (2.0 lb.)
Recommended Boat Length	Up to 8 m (25 feet)
Hull Material	Fiberglass or wood
Hull Deadrise	Best performance through 7 deg. Can accommodate up to a 12 deg.
Acoustic Window	Urethane
Hole Diameter	51 mm (2)
