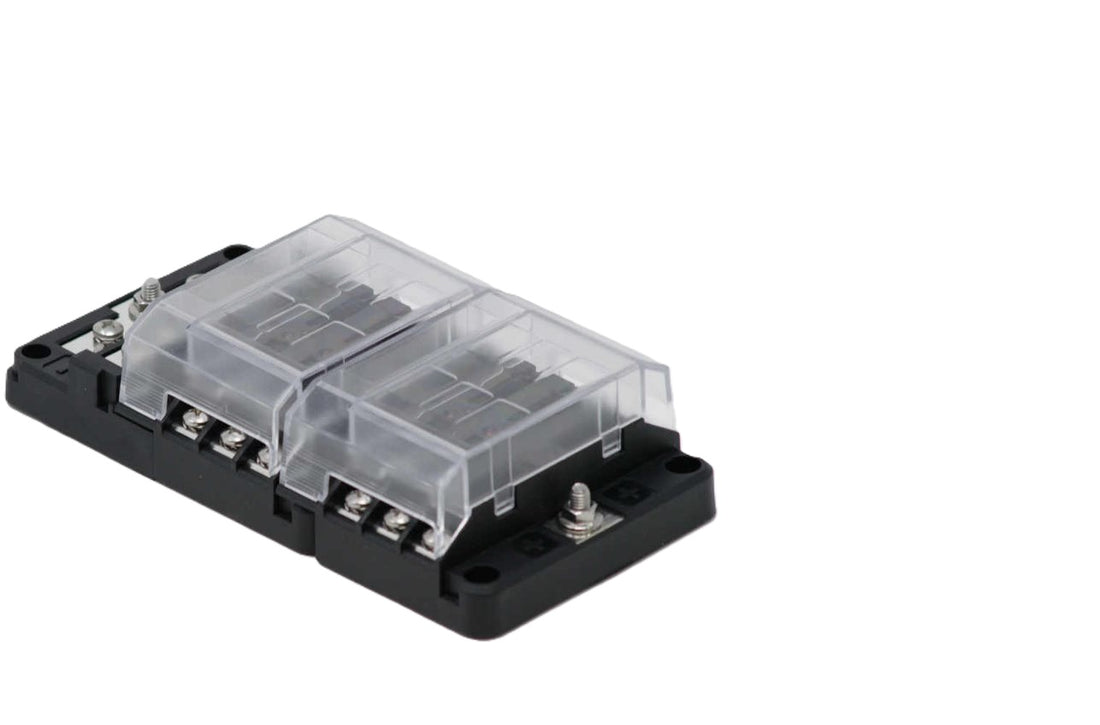

EGIS RT Fuse Block 12 Circuit with Ground and LED Indication - 8026

EGIS RT Fuse Block 12 Circuit with Ground and LED Indication

• Spare Fuse Locations
  Two locations per 6 circuits for spare or test resistors for reducing siren volumes during evaluation.
• Stainless Steel Self-Locking Hardware
  100 % Non Ferrous corrosion resistant materials. All attachment screws and nuts are self locking.
• LED Fuse Diagnostics
  Blown fuse LED indication for each output circuit provides clear indication of faulty circuits and eases trouble-shooting issues remotely.
• Cover/ Label Recesses
  Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.
• Ground Block Included
  Includes 12 position ground return block with multi level low amp terminal screws for improved mounting.
• Ground Block Separates
  Ground block section optionally separates from fuse block section affording increased deployment options for challenging installations.

Bullet-proof Construction: Designed with high temperature materials and stainless steel self-locking hardware allow mounting anywhere on vehicle.

Protects Branch Circuits by accepting ATO style fuses ranging from 1 through 40 Amps.

Supports SAE Circuit Protection Standards for thermal/short circuit events.
