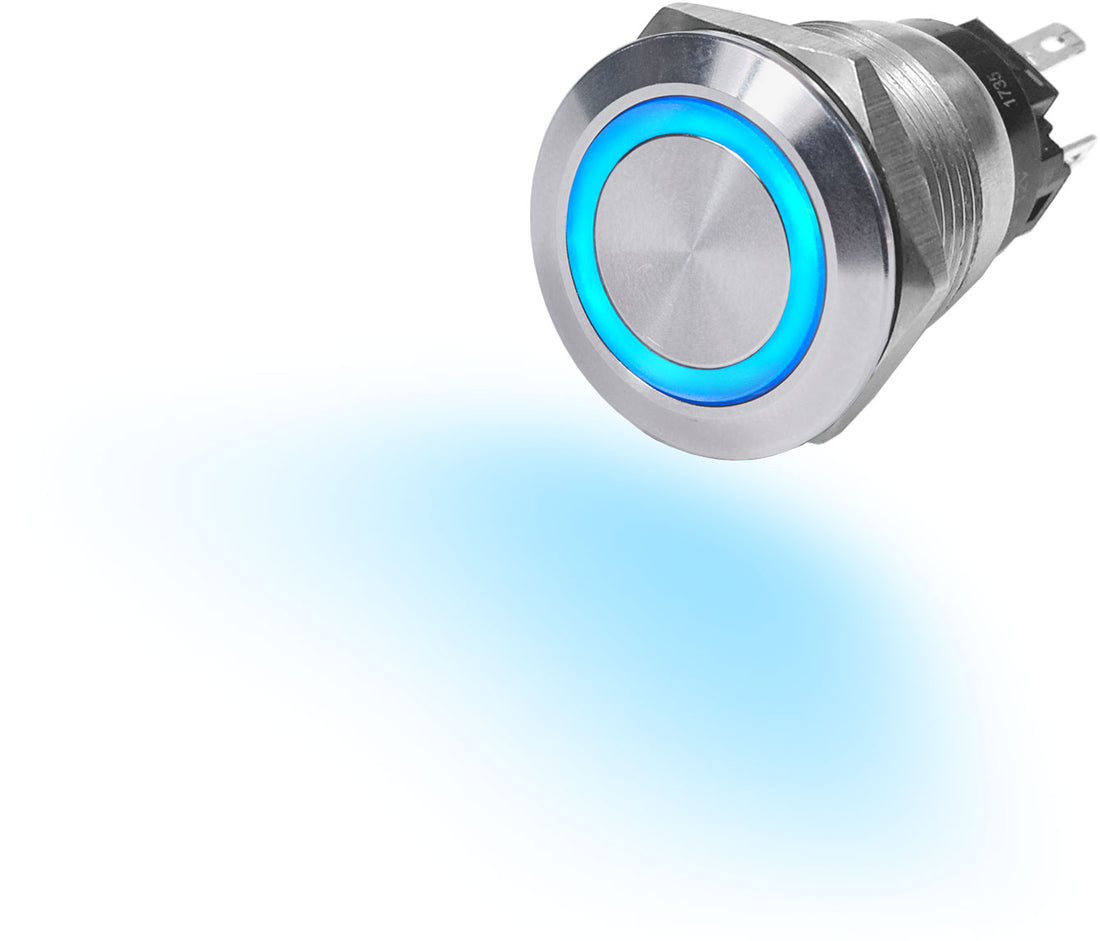

Blue Sea 4161 10 A Push Button Led Ring Switch Off (On) Blue Momentary On
Blue Sea Systems

Blue Sea 4161 10 A Push Button Led Ring Switch Off (On) Blue Momentary On

$33.59

Blue Sea 10A Push Button LED Ring Switch Off-(On) Blue- Momentary On

Model: 4161-BSS
  • 10A continuous
  • Can be wired for normally open or normally closed
  • Installs with .110inch quick connects (included in retail package)
Specifications
Action
OFF-(ON)- Momentary One
Amperage 10A @ 12V DC Resistive

3A @ 12V Inductive
Nominal Voltage 12V DC
Maximum LED Operating Current 20mA
Minimum Operating Temperature -10 deg C
Maximum Operating Temperature 70 deg C
Minimum Storage Temperature -55 deg C
Maximum Storage Temperature 85 deg C
Illumination Independent - Separate contacts for LED power
Max Panel Thickness 0.31in (7.87 mm)
Mounting Hole 3⁄4 in (19mm)
Switching Cycles 40,000
Termination 5 - 0.110inch Quick Connect terminals
